Globe Automation Solutions offers a wide
range of Power Controllers/ Thyristors for
controlling linear and non-linear resistive
loads, infrared lamps (SWIR), and transformers

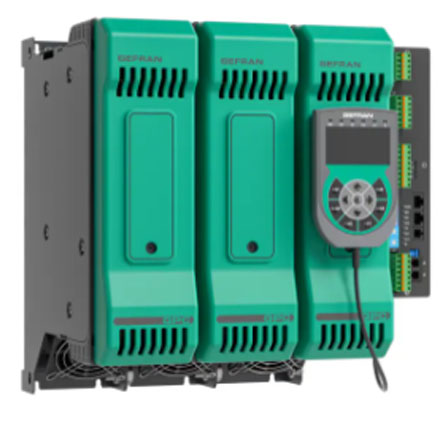

GPC
Single/two/three-phase Current capacities from 40 A up to 600 A
Operating voltages 480 Vac, 600 Vac and 690 Vac
Firing mode configurable in “Zero crossing” ( Fixed Cycle, Burst Firing, Half Single Cycle ) and “Phase angle”
Three analogue control inputs configurable in Volt, mA, potentiometer and digital “PWM” for power % control
4 digital inputs, 3 of which can be configured as “PWM” input for power % control
Three settable retransmissions analogue outputs
Optional inputs from external TA and TV
Soft_Start and RMS and peak current limits
Feedback V, V2, I, I2, P
Total and partial interrupted load alarms with Relay outputs
Built-in fuses
Temperature sensors on Power terminals and cooling air inlet
