Globe Automation Solutions offers solid-state relays, available with or without heatsink, provide precise and efficient power control for industrial applications.

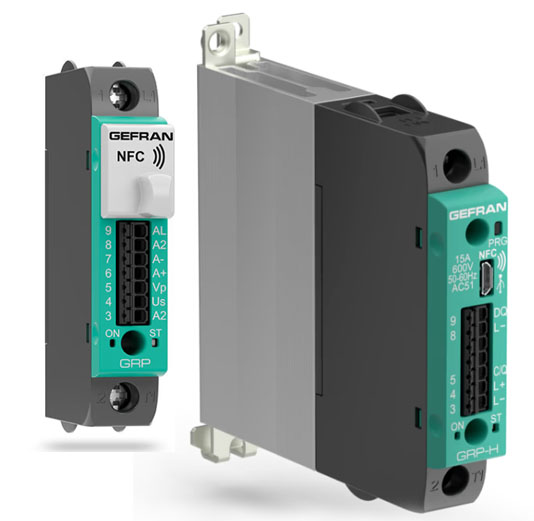

GRP/ GRP-H
STATIC POWER UNITS WITH PARTIAL LOAD BREAK, LOGIC/ANALOG COMMAND AND IO-LINK COMMUNICATION
Ultra-compact dimensions from 15A to 120A
Load voltage 480V, 600V AC
SCCR 100 kA
DIN rail and panel mounting
IO-Link digital communication
Zero voltage crossing (Zero Crossing) or Phase angle control.
On/Off control, optimized/fixed cycle time, Half Single Cycle, Phase Angle, soft start ramps.
Input command from V DC, Analogue signal (0..5V, 0..10V, 0..20mA, 4..20mA, potentiometer) or IO-Link logic.
Connectors for push-in control signals; signal LED.
Configuration and diagnostics via smartphone app with NFC technology.
Alarm threshold calibration by button or digital input.
Compact versions with expanded i2 t.
Cage clamps for power cables
Advanced diagnostic option with partial load break (up to 8 loads in parallel), current measurement and energy meters.
Internal over voltage protection
Integrated cooling fan power option.

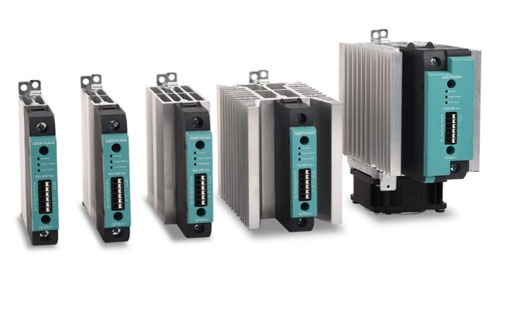

GRS/ GRS-H
ULTRA-COMPACT STATIC POWER UNITS WITH DC / AC LOGIC CONTROL
Ultra-compact dimensions from 15A to 120A
DIN rail and panel mounting
Switching at zero voltage changeover
Input command from DC/AC logic signal with push-in connectors; signalling leds
