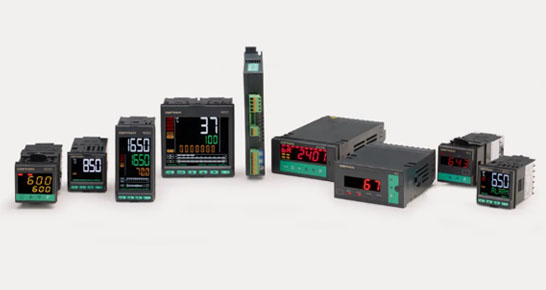

Controllers & indicators

Suitable for measuring and controlling the main industrial process variables like temperature, Flow, Pressure Etc.

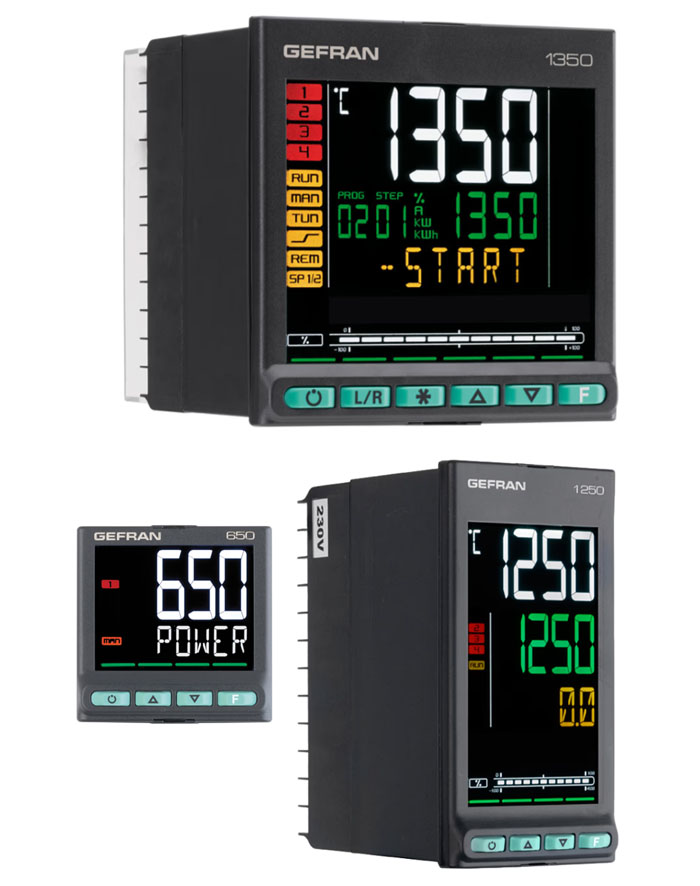

Single Loop Controller

Single Loop Controller

650/1250/1350 Series PID Controller

  • Operator interface with large LCD Display, customizable, with choice of colors
  • Scrolling diagnostics messages, configurable, in the selected language
  • Easy, guided configuration, copy/ paste parameters even with power off
  • Preventive maintenance with energy counters (kWh) and load switching
  • 6 function block applications
  • Timer, setpoint and algorithm programmer for controlling motorized valves
  • Advanced tuning of control parameters
  • Different password levels
  • Universal input configurable for thermocouples, resistance thermometers, linear inputs
  • Remote Setpoint input
  • Relay, logic, isolated analog outputs
  • Up to two CT inputs for interrupted load diagnostics
  • RS485 serial communication in Modbus RTU
  • Removable faceplate for immediate replacement
  • Sampling time 60 ms

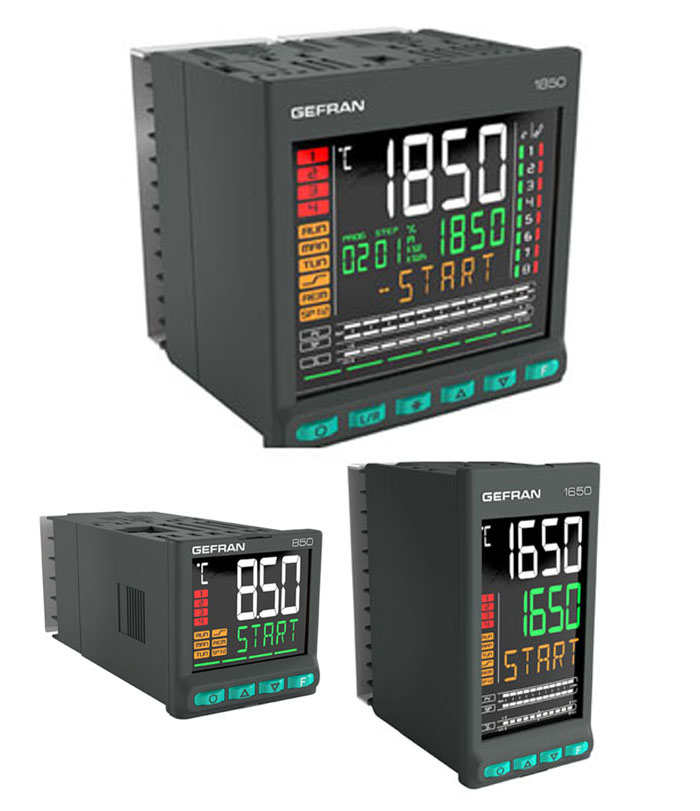

Dual Loop Controller

Dual Loop Controller

850/1650/1850 Series PID Controller

  • Operator interface with large LCD Display and three configurable bar graphs
  • Scrolling diagnostics messages, configurable, in the selected language
  • Easy, guided configuration, copy/paste parameters even withe power off
  • Preventive maintenance with energy counters (kWh) and load switching
  • 32 function block applications
  • Math application blocks
  • Timer, setpoint and algorithm programmer for controlling motorized valves
  • Advanced tuning of control parameters
  • Different password levels
  • 2 setpoint programmers (192 steps in 16 programs, or 12 programs with 16 fixed steps each)
  • 2 PID control loops
  • Relay, logic, isolated analog outputs
  • Up to two TA inputs for interrupted load diagnostics
  • RS485 serial communication in Modbus RTU slave
  • RS485 serial communication in Modbus RTU master for reading/ writing information to Modbus slave devices
  • Ethernet Modbus TCP communication in Slave mode
  • Web server for browser access to web pages residing in the device, for monitoring and setting parameters
  • Bridge function for creation of Modbus RTU 485 sub-network
  • Weekly clock\calendar with RTC
  • Removable faceplate for immediate replacement
  • Accuracy 0,1%, sampling time 60ms

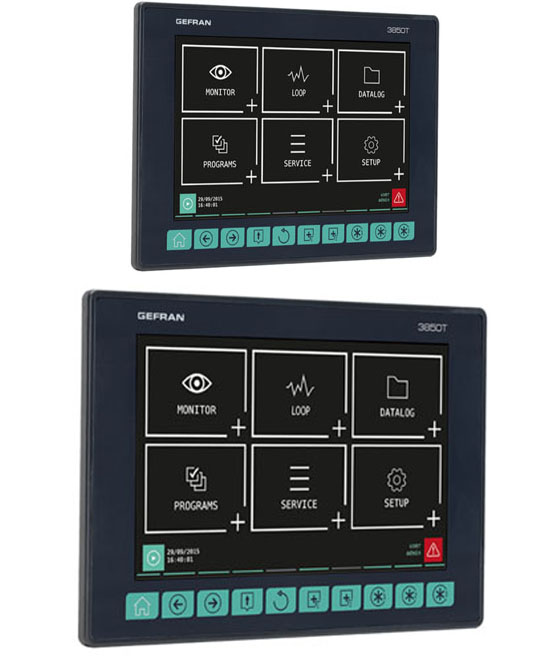

Multi-function Controller

Multi-function Controller

2850T/3850T

  • Operator interface with color touch screen display, 7” for 3850T and 3.5” for 2850T
  • Up to 16 PID control loops for 3850T and Up to 8 loops for 2850T
  • Cascade, ratio and valve PID controls
  • Profile programmer with ramps and retention; synchronous and asynchronous
  • Up to 250 Programs with 50 segments
  • 3 password protected user levels
  • Energy meter (kWh)
  • Configurable logic operations
  • Configurable math functions
  • Data Log with Real Time Clock
  • Batch Report management
  • Open format files (CSV) or encrypted for Data Log and production batches
  • Setting up custom pages
  • Active and historical alarm management
  • USB for data export and parameter cloning
  • Control parameter advanced tuning
  • Configurable analogue and digital I/O signals
  • HMI/SCADA/PLC data exchange via Ethernet Modbus TCP
  • Message language selection
  • Compliance with CFR-21 regulation through Audit Trail.
